Specification
Model : LF1000
Rated power: 500W
Peak power: 1000W
AC Output Waveform : Modified Sine Wave
DC input voltage: 12V
DC input voltage range: 10V-15.5V/20V-30V
Low Voltage Alarm: 11V+/-0.5V, 21V+/-1V
Low Voltage Shutdown: 10V+/-0.5V, 20V+/-1V
Over Voltage Protection: 15.5+/-0.5V, 30V+/-1V
Low Voltage Recovery: 12+/-0.5V, 24V+/-1V
Over Voltage Recovery: 15V+/-0.5V, 30V+/-1V
AC output voltage: 110V/220V
AC output voltage range: 110V±10%/220V±10%
AC output frequency: 50Hz/60Hz
Waveform Distortion: THD<2%(Linear load)
Efficiency: ≥93%
Working Temp: -10°C — +60°C

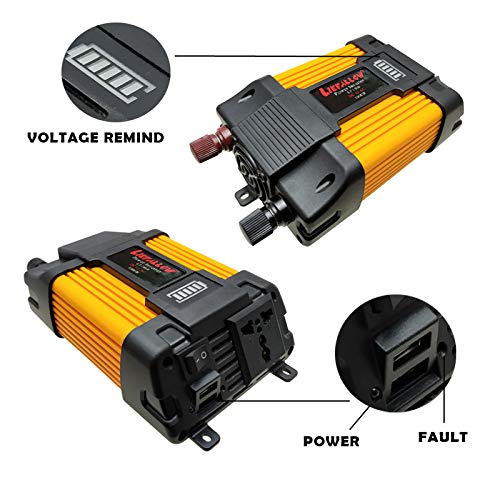

Indicator: Dual color LED(green power/red fault)
Color: YellowBlack
Plug type: Universal socket
Over temperature protection: 60℃
Optimal Use and Precautions

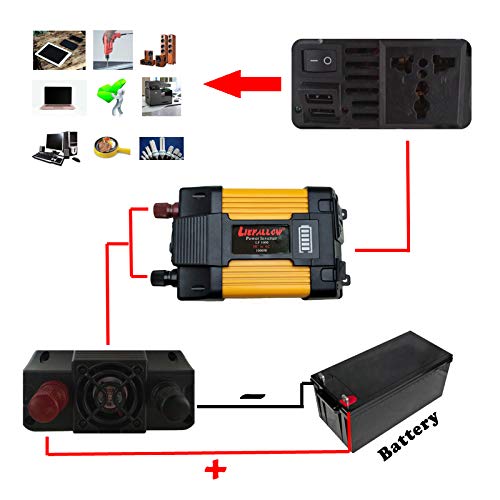

First turn off the inverter switch and connect to a 12V battery or connect to a cigarette lighter socket in a car, then plug your AC devices into the inverter.
Do not disassemble the 220v car power on your own, as its high pressure could cause injury.
Do not place it into direct exposure under the sunshine or use it around a heat source, keep it in a cool environment.
Keep it away from water or damp places, oil or flammable gases, keep it dry.

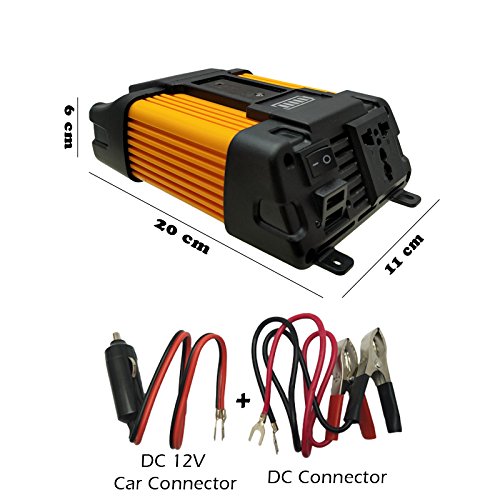

Package List
1×1000 Watt Car Power Inverter
2×Battery Clip
1×Cigarette Lighter

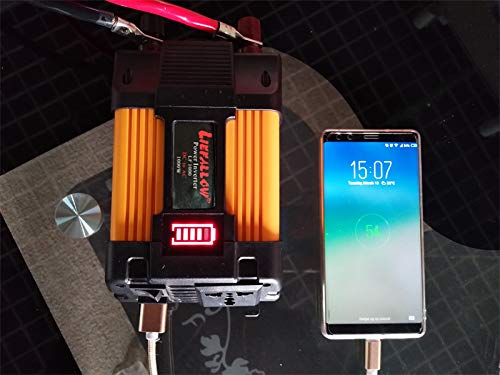

LCD Display which shows up battery power, when your battery is losing the power, it will tells you how much the battery power left.
Fast Charging which 110V AC outlets for charging larger devices such as laptops and tablets, 2 USB charging ports (0-4.2A) for powering USB compatible devices

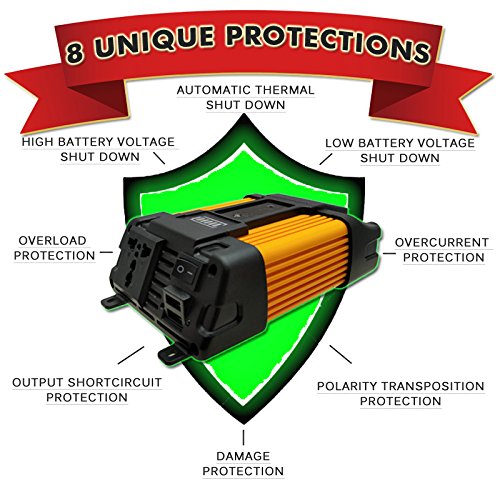

Multi-function protections which input power overloading, alarm will sound to remind you. when the LCD Dispay shows red light, means low voltage for the battery, the alarm will sound.
High tempertrue protection which is working with electronics, the fan will start to work, protecting the inverter’s tempertrue, keep the inverter always cool.
Two accessories which let you to easier to use it. A pair of battery clip is using in vehicle’s battery or home battery, cigarette lighter is using in car inside 12v cigarette output power. Those are connecting to inverter’s DC input connections for inverter’s power up.
