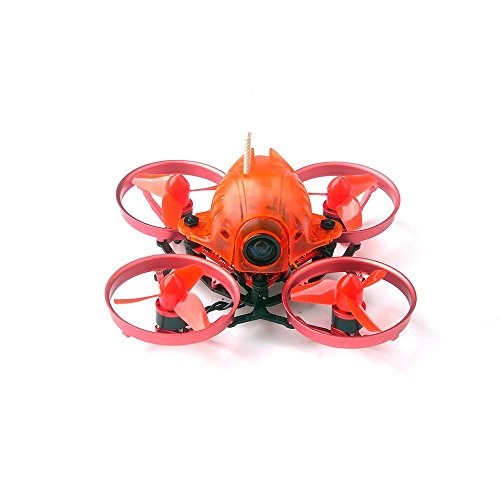

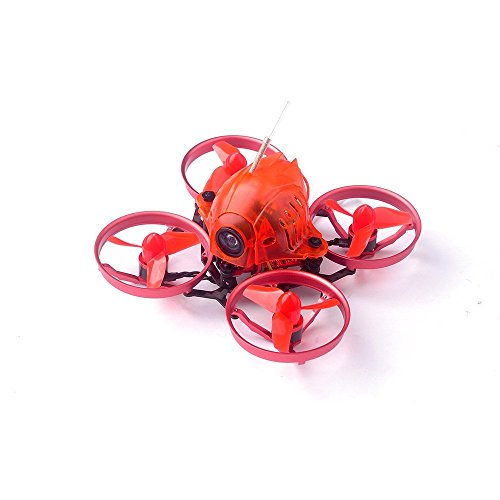

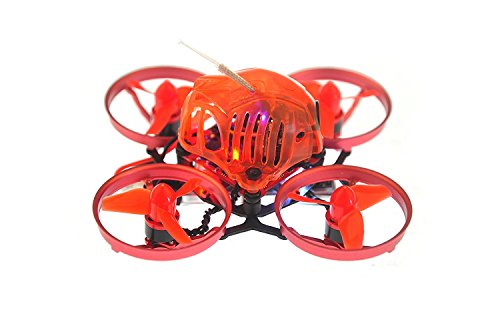

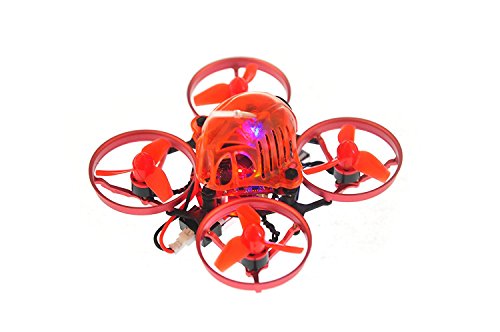

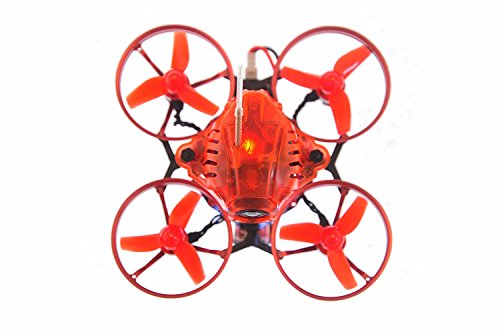

Specifications:
Brand Name: Happymodel
Mode Name: Snapper6

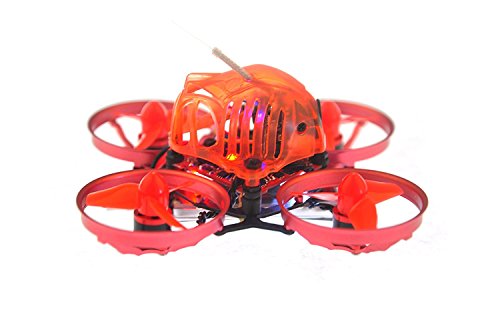

Item Name: 1S Brushless Whoop racer drone BNF
Wheelbase: 65mm
Size: 81mm*81mm*36mm
Weight: 23g(without battery); 31g(with battery)
Package includes:
Snapper 6 Frame *1
Crazybee F3 FC *1
SE0603 KV19000 Motor *4 31mm 3-blades propeller(4cw+4ccw)
700TVL 1/4 CMOS Camera & 5.8g 48CH 25MW VTX *1
3.8v 250mah 30C/60C battery *1
USB Lipo/LIHV Charger *1
Propeller disassemble tool *1
Screwdriver *1
Flight controller
Firmware: Betaflight_3.3.0_Crazybee
MCU: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Board weight: 3.5 g
Power supply: 1S battery input (DC 3.5-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Frsky receiver with telemetry(D8/D16 switchable)
Built-in Betaflight OSD(SPI Control)
t-in Current meter Max 14A
Built-in 5V 0.8A BEC with LC filter
Built-in voltage detection
BLHELI_S pass-through Ready
Heading LED Ready
AIO Camera&VTX
Output power: 25mw
Frequency: 48CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Camera resolution: 700TVL
Field of view: 120°
Video Format: NTSC
Antenna: RG178 antenna
Frequency: 5.8GHz 6 bands 48 channels
With Raceband: 5474 5945 MHZ
Size: 13.9″12.0mm ( L*W )
Weight: 3g
Lipo Battery
Capacity:250mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Instantaneous discharge rate: 60C
Size: 55mmx12mmx7mm
Weight: 6.5g
Connector: PH2.0
Make sure this fits by entering your model number.
Betaflight support , multi flight mode: ACRO/AIR/ANGLE. Powerful Brushless motor and Smooth ESC.;Motor; Mode: SE0603 KV19000; Configu-ration:9N12P; Stator Diamter:6mm; Stator Length:3mm; Shaft Diameter:Φ0.8mm; Motor Dimension(Dia.*Len):Φ9mm*15.5mm; Weight(g):1.7g; No.of Cells(Lipo):1S;Onboard 4in1 ESC; Power supply: 1S LiPo/LiPo HV (4.2v/4.35v); Current: 5A continuous peak 6A (3 seconds); Support BLHeliSuite programmable; Factory firmware: O_L_5_REV16_6.HEX; Default protocol: DSHOT600;
CNC aluminum alloy propeller guard.

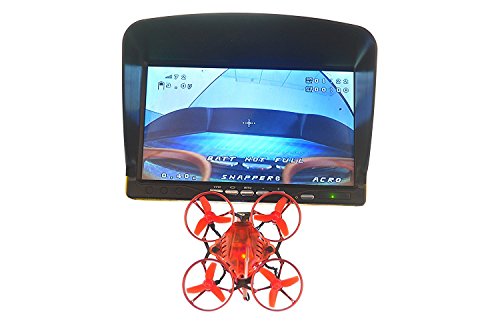

Betaflight OSD support ,easy to get RSSI , Voltage and other info from your goggles. Adjust the settings and the PID of the flight controller via OSD.
Flysky version support both AFHDS and AFHDS-2A Protocol Flysky transmitter. Flysky receiver Version:SPI BUS receiver;Protocol: AFHDS and AFHDS-2A Switchable;Channels: 8ch(AFHDS) or 14ch(AFHDS-2A);No ground interference ( Transmitter and receiver 1 m from the ground): 300mFailsafe support
Full telemetry function ready. Head lights ready. Camera angle adjustable. Real Bind and Fly version.
